CNC Router Cutting for ACM, Panels, Timber and Plastics
CNC routing, drilling, pocketing and V-grooving for ACM, HDPE, MDF, plywood, PVC foamboard, composite panels and selected aluminium work.
Get instant pricing through our existing online platform. For work that needs review, send your drawing and job requirements for a confirmed quote.
Quote pathInstant pricing, followed by file review
Accepted filesDXF, DWG or vector PDF with real cut lines
ProductionMade in Botany, Sydney, with freight Australia-wide
Review pathComplex work can be checked before production
Plan your cutting job
From flat profiles to pockets and V-grooves

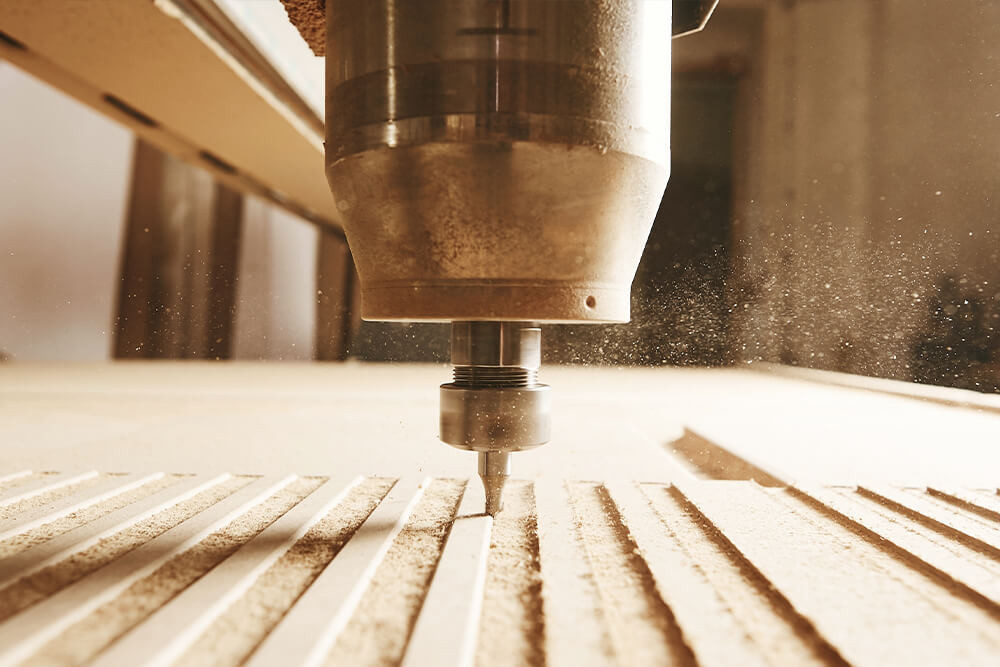

CNC routing uses a cutting tool to machine panels and sheet parts. Send separate layers for through-cuts, holes, pockets, rebates and V-grooves, with the depth and face side marked. Internal corners follow the tool radius; flag any fit or assembly requirement with the drawing.
Typical work includes ACM panels, HDPE parts, MDF and plywood. For Formply panels and repeat cut lists, send the sheet specification, finished sizes and quantities for review. Send a DXF, DWG or vector PDF with the material, thickness, finished sizes and quantities. Mark machining depths, visible faces and finishing needs for review. Need local collection? See Sydney CNC router cutting.
Service detail
CNC router cutting for panels, boards, plastics and V-groove work.
CNC router cutting is the practical workhorse for sheet materials that need tool-based machining instead of laser cutting. It suits ACM, HDPE, PVC foamboard, MDF, plywood, timber, composite panels and selected aluminium work.
For sign shops, shopfitters, fabricators and industrial buyers, CNC routing handles the jobs where tooling, fold lines, internal radii and material behaviour matter more than heat-cut speed.
Router jobs often involve more than a simple profile: pockets, drilling, rebates, V-grooves, tabs, onion-skinning and hold-down strategy can all change how a job should be priced and produced.
ProcessCNC routing, drilling, pocketing and V-grooving
Best forACM, HDPE, MDF, plywood, PVC foamboard and panels
Quote pathInstant pricing where supported; file review when required
Review whenV-groove, pocketing, fold lines or special tooling is required
Technical quoting detail
Specs to check before you upload.
Check your material, file geometry and routing operations before choosing instant pricing or sending the job for review.
Service
CNC router cutting, routing, drilling, pocketing, rebates and V-grooving for sheet materials.
Best materials
ACM, HDPE, PVC foamboard, MDF, plywood, polycarbonate, polypropylene, selected plastics and panel products.
Best job types
ACM sign trays, shopfitting panels, plastic parts, templates, timber panels, display components and routed fabrication parts.
Accepted quote files
DXF, DWG or vector PDF files with real geometry. Separate through-cut, drill, pocket, rebate and V-groove layers where needed.
Pricing factors
Material, thickness, tool diameter, internal radii, cut length, pockets, drilling, tabs, hold-down, face orientation and file setup.
Review before pricing
Use the reviewed quote path for V-groove folding, rebates, countersinks, multi-tool work, customer-supplied panels, assembly or finish-critical jobs.

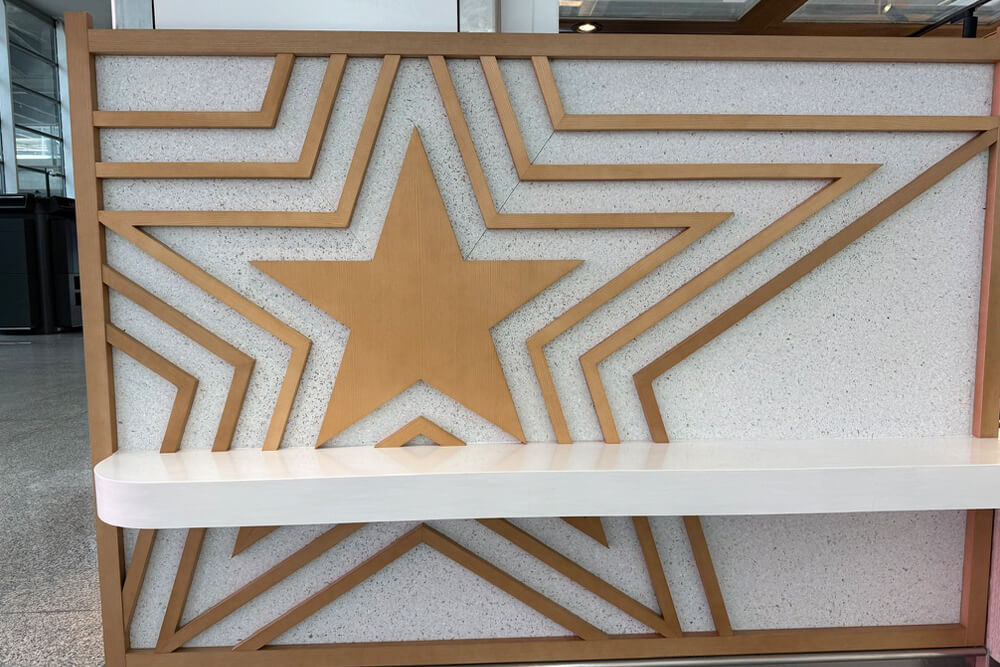

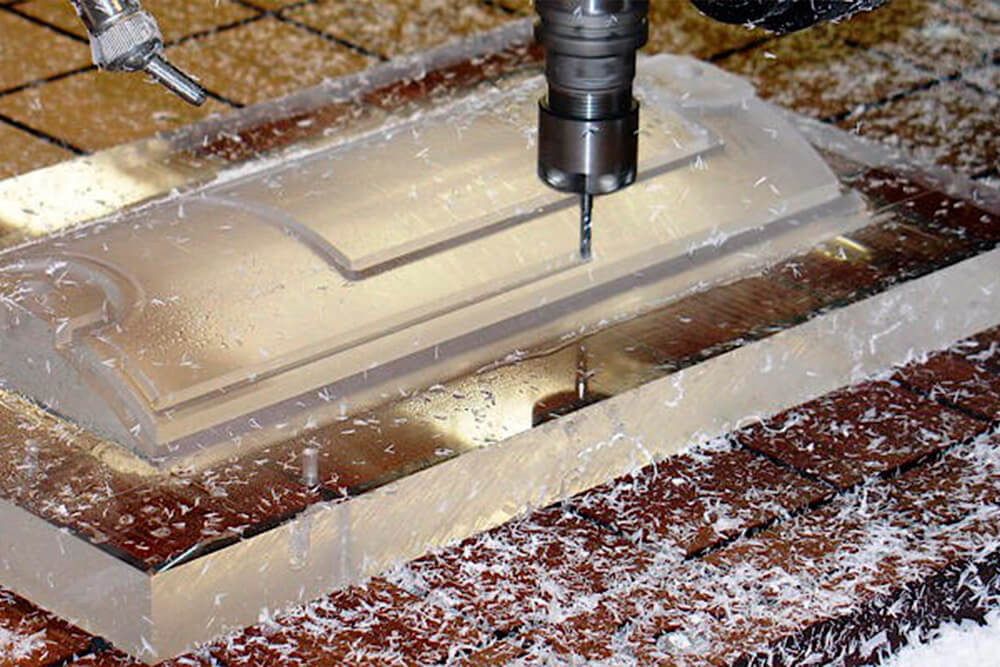

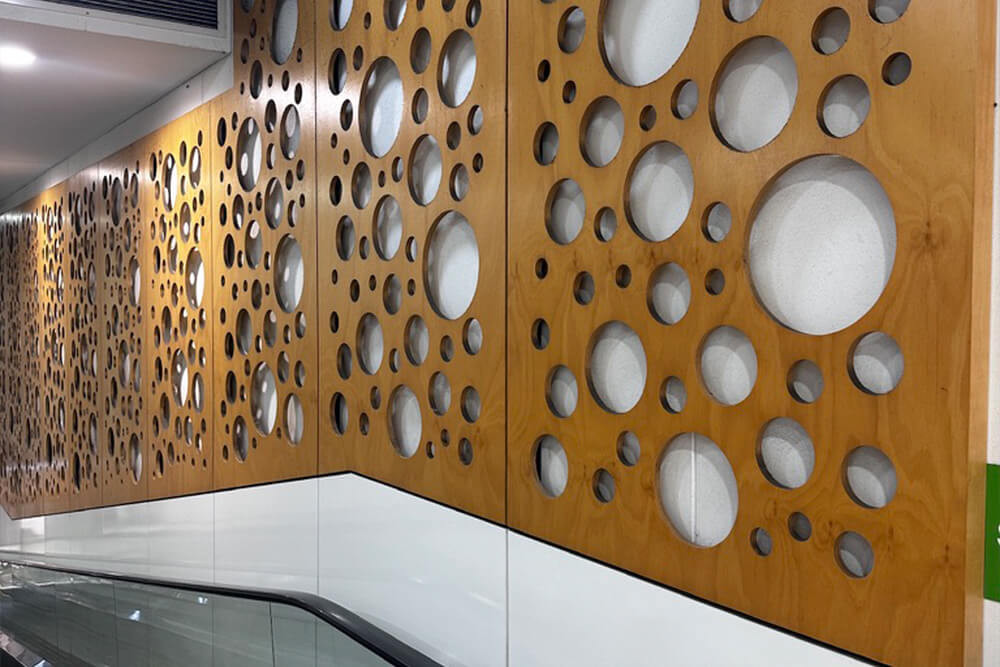

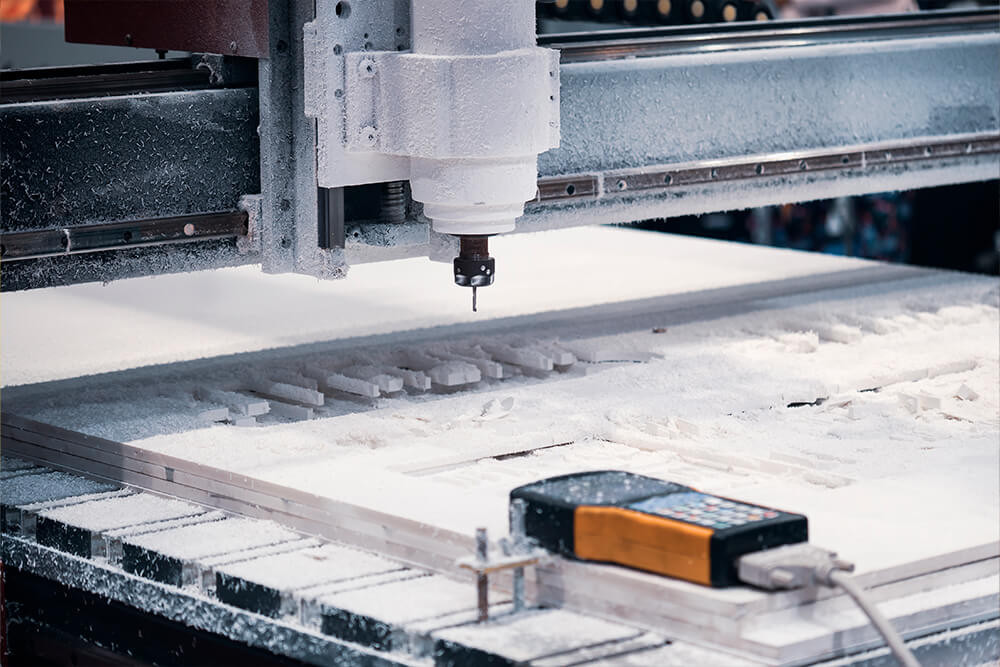

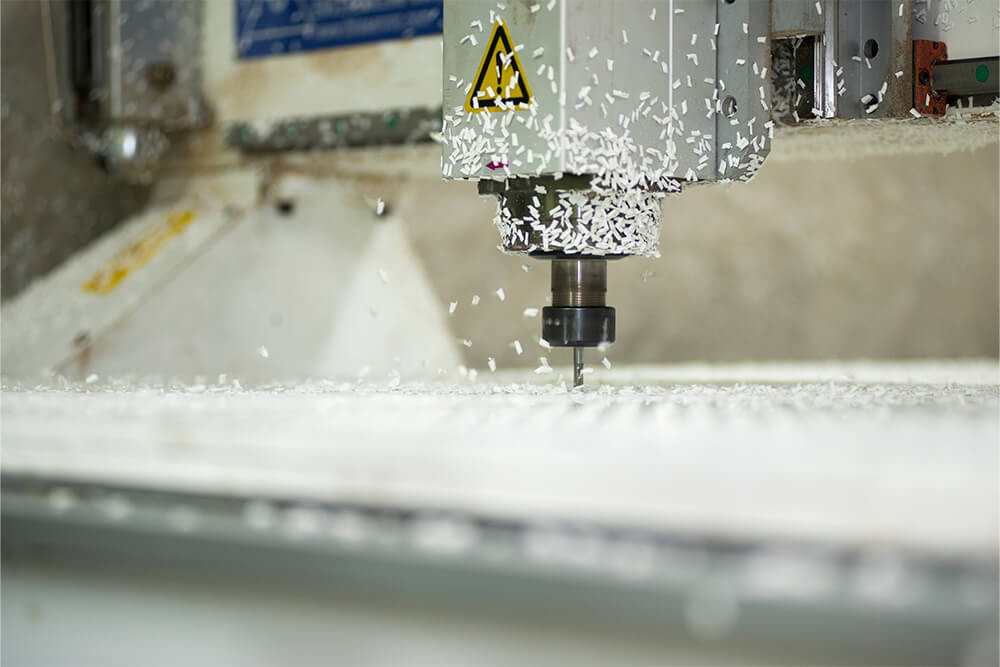

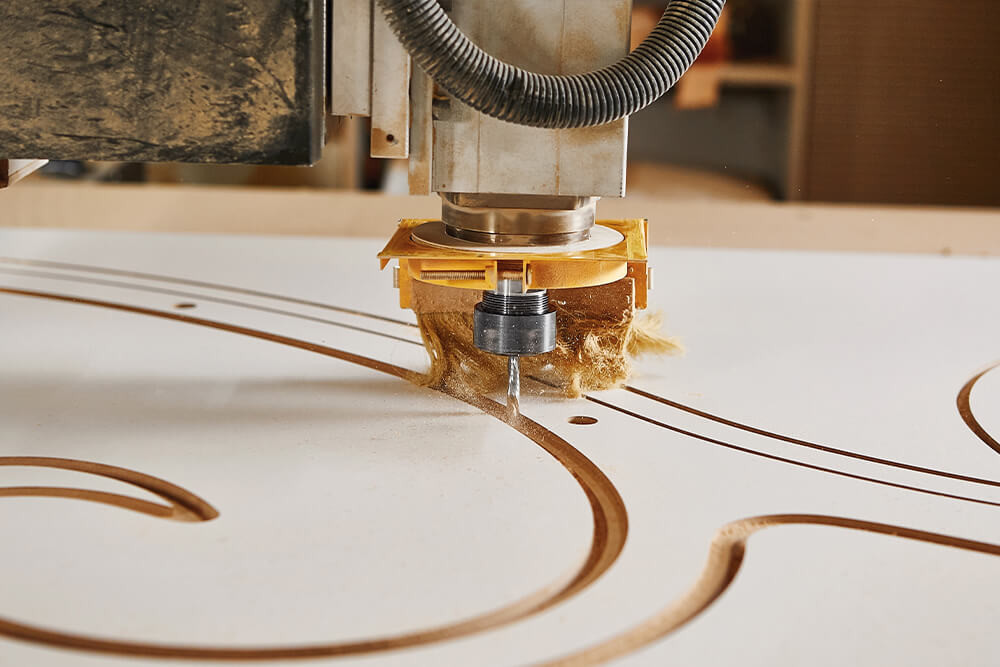

Real workshop photos
Real cnc router cutting work from our workshop.

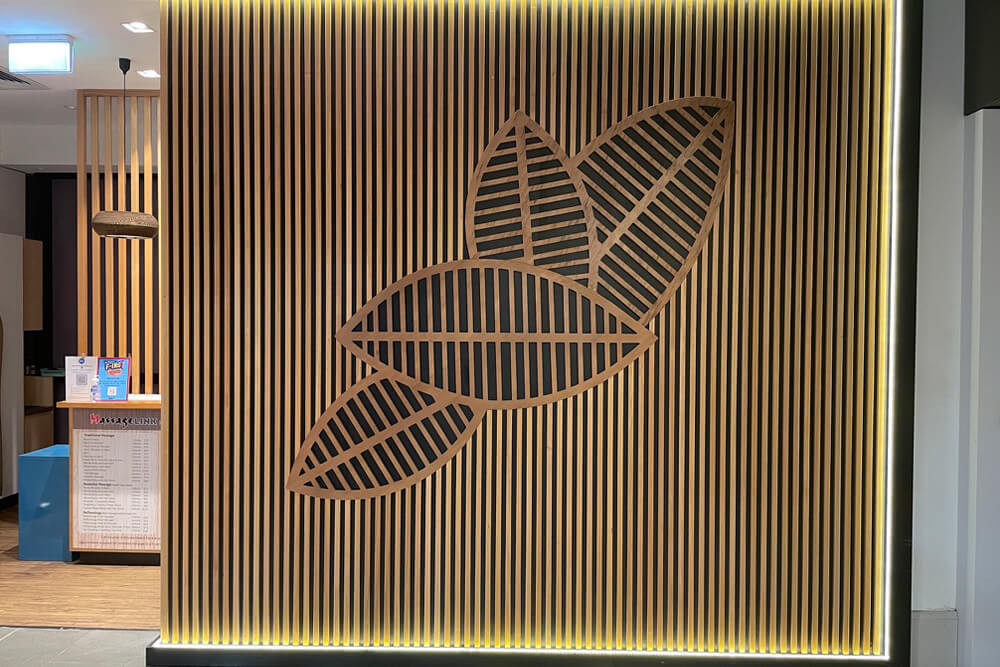

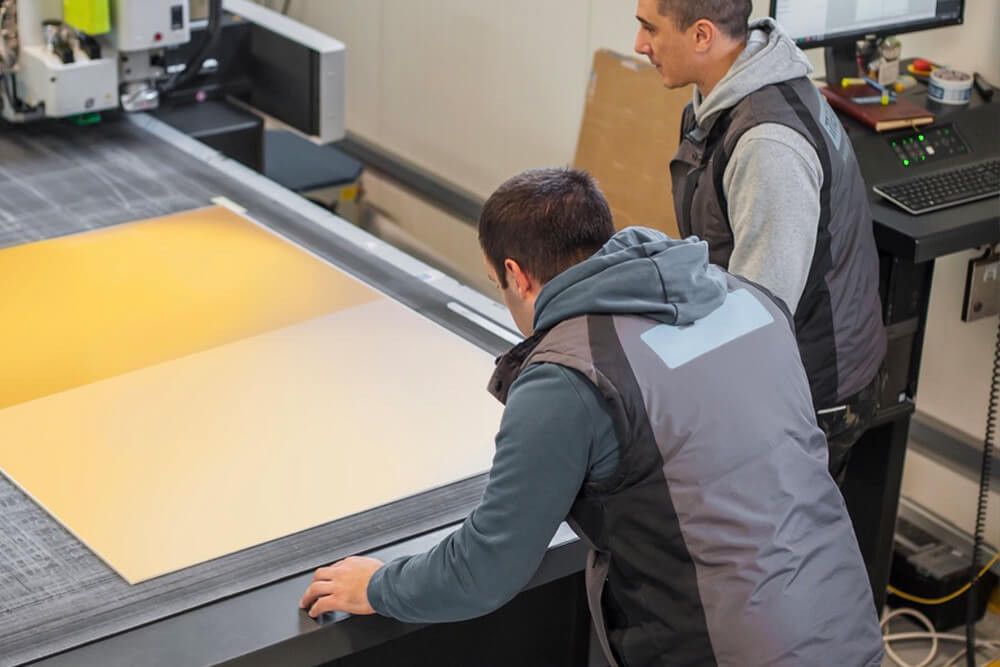

CNC router work across sheet plastics, panels, boards and routed signage components, showing real workshop process and finished production parts.
Best-fit work
Where cnc router cutting makes the most sense.
Sign shops, fabricators and production teams use CNC routing for panel profiles, pockets, rebates and grooves. Include the machining depths, face side and fit requirements with the drawing.
Plastics and panels

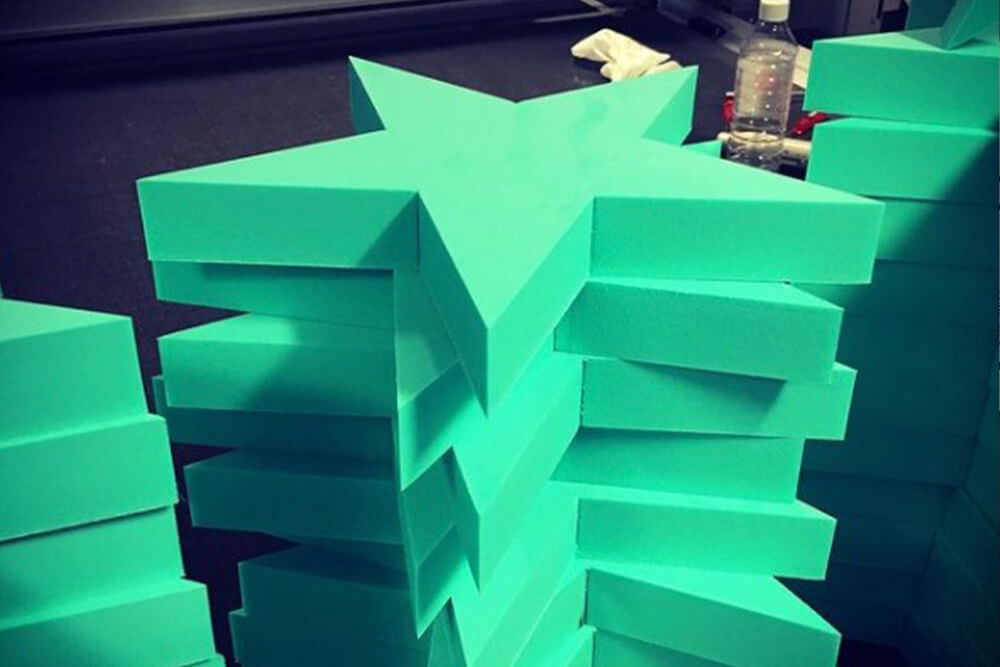

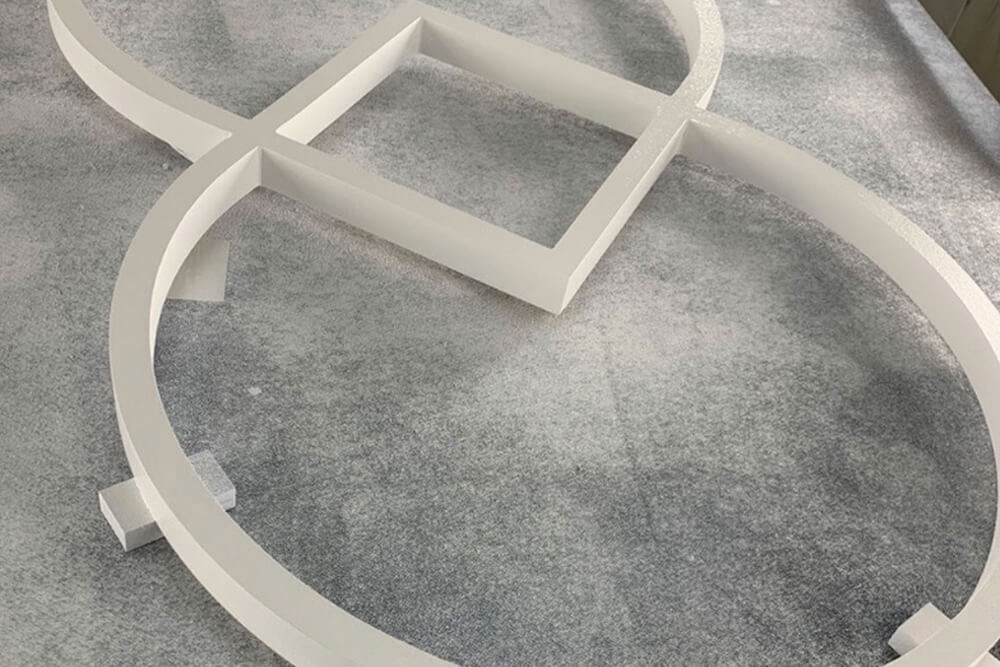

HDPE, PVC foamboard, acrylic, polycarbonate and composite sheets that need routed edges.
Joinery and fitout parts
MDF, plywood, templates, jigs and interior panels cut from production drawings.
Material fit
CNC router materials and the machining details to specify.
Include the material, thickness, edge finish, face orientation and any machining beyond through-cut profiles with the drawing. These details are checked with your drawing before the final quote.

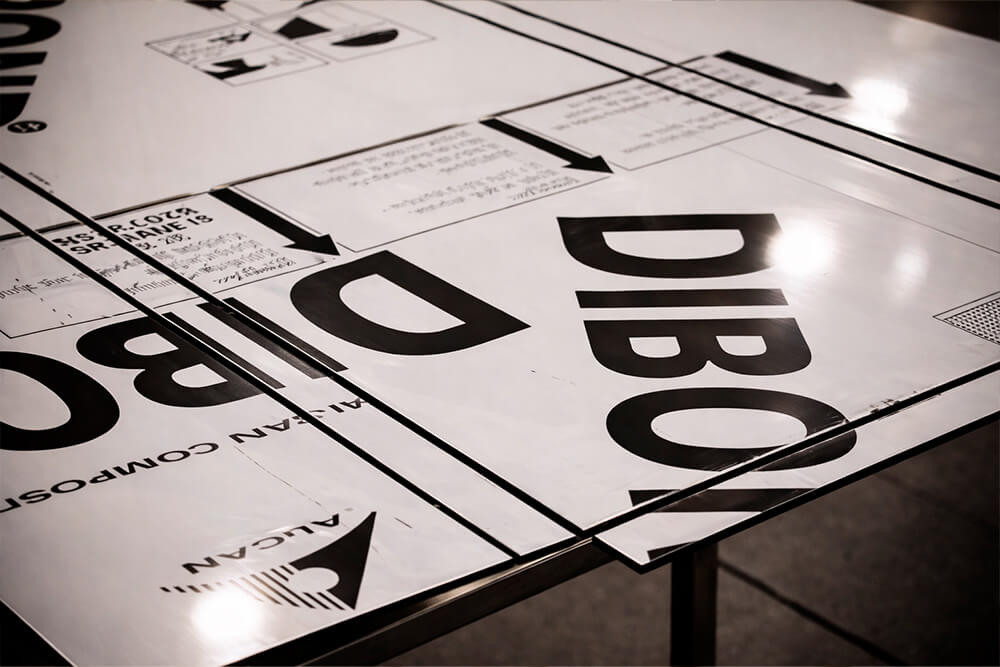

ACM
Best routed rather than laser cut, especially for V-groove folds and clean panel fabrication.
HDPE and engineering plastics
Strong fit for industrial parts, templates and durable plastic components.

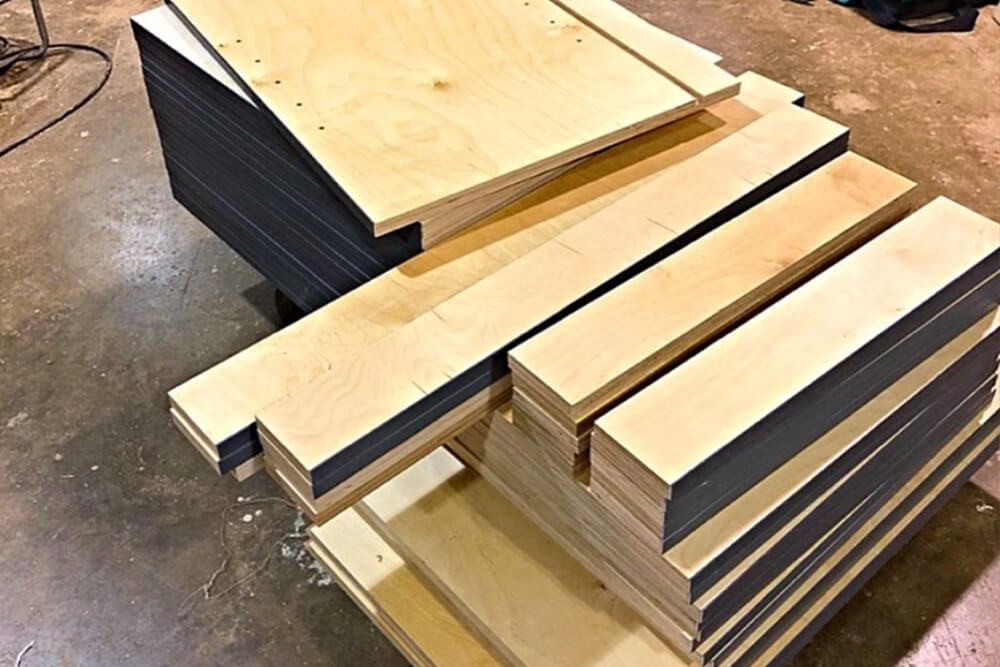

MDF and plywood
Useful for joinery, displays, templates and interior panels.

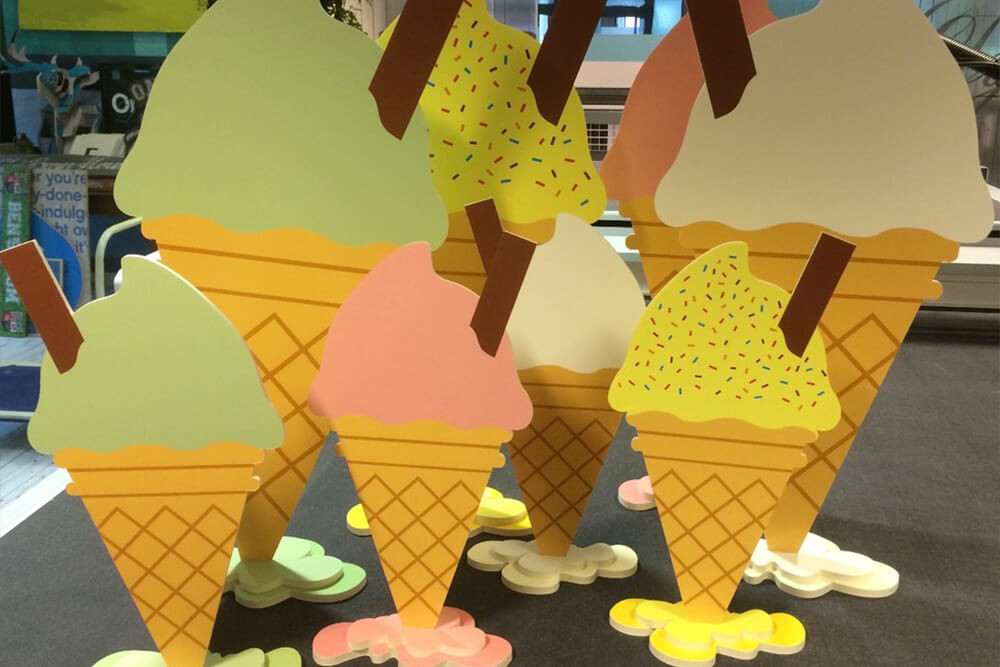

PVC foamboard
A signage and display material that should be routed or knife cut rather than CO2 laser cut.
Preparing your drawing? Use our CNC file setup guide for profiles, pockets and grooves. Mark the depth and face side of each operation so the review covers the finished part.
File rules
What counts as a cut-ready file.
Production drawings need real vector paths at the finished size. The CNC quote form uses the dimensions and cutting details you enter; it does not read or approve the geometry in your drawing. Our team reviews the file and machining operations before confirming the quote.
PDF
PDF only works when the cut lines are real vectors.
Saving a photo or screenshot as a PDF does not create vector paths. You can still send it with dimensions for file-preparation advice; it is not a production drawing.
- Use DXF or DWG wherever possible.
- Vector PDF can work when it contains real vector cut lines.
- Keep artwork, engraving, crease and cut operations on clearly named layers.
- Supply files at 1:1 scale with closed paths and duplicated lines removed.
Not ready yet?
Use the reviewed quote path.
If the job includes photos, sketches, mixed services, unclear material, finishing, fabrication, painting, welding, 3D printing, installation context or production advice, send the brief through contact instead.
Workflow
From upload to production.
Send the geometry
DXF, DWG or vector PDF files should show the outer profile, holes and any routing layers.
Confirm the operation
Through-cut, pocket, drill, rebate and V-groove operations need clear layer naming.
Match tooling
Tool diameter, internal radii, hold-down and tabs are checked before production.
Route and finish
Panels are machined, cleaned and packed for assembly, pickup or delivery.
Quote path
Use instant pricing, or send the drawing for a reviewed quote.
Use the Instant Pricing Calculator for suitable files, or send the drawing and job requirements for review. Pockets, grooves, tooling, supplied material and finishing need confirmation before we issue the final quote.
The part needs V-groove folding, pocketing, rebates, countersinks or multiple tools.
Internal corners are smaller than the router bit can physically cut.
The sheet is customer-supplied, bowed, film-coated or needs a specific face orientation.
The job needs assembly, fabrication, painting, printing or installation context.
Related materials
Material pages connected to this process.
Common questions
Answers before production starts.
Can CNC routing be priced instantly?
Use our Instant Pricing Calculator for online pricing on supported jobs. For CNC work needing review, send your drawing with the material, thickness, quantity and operation requirements. We review the file and confirm the quote.
Can you CNC route ACM panels?
Yes. ACM is usually better routed than laser cut, especially for V-groove folds, sign trays and clean panel fabrication.
What file types work for CNC router cutting?
DXF, DWG or vector PDF files work best when they contain real geometry at the correct scale. Routing operations should be clearly separated by layer or notes.
Why use CNC router instead of laser?
Some materials cut better with a physical tool. ACM, PVC foamboard, HDPE and many boards are usually better suited to routing or knife cutting than laser cutting.
What's your minimum order quantity?
One-off parts, prototypes and repeat runs can be quoted. Setup and minimum charges can affect small jobs. Send your drawing for a reviewed CNC quote before ordering.
Do you offer engraving?
Yes. CO2 laser engraving is available for compatible materials such as acrylic and timber, and some jobs can also use marking, printing or finishing depending on the material.
Can you cut metal?
Yes. Fiber laser cutting is used for sheet metals including mild steel, stainless steel, aluminium, brass, copper, Colorbond and Corten steel where the material and thickness are suitable.
Ready file
Use instant pricing, or send your CNC router drawing for review.
Upload DXF, DWG or vector PDF files with actual cut paths, or send complex jobs through the reviewed quote path.
